Copper

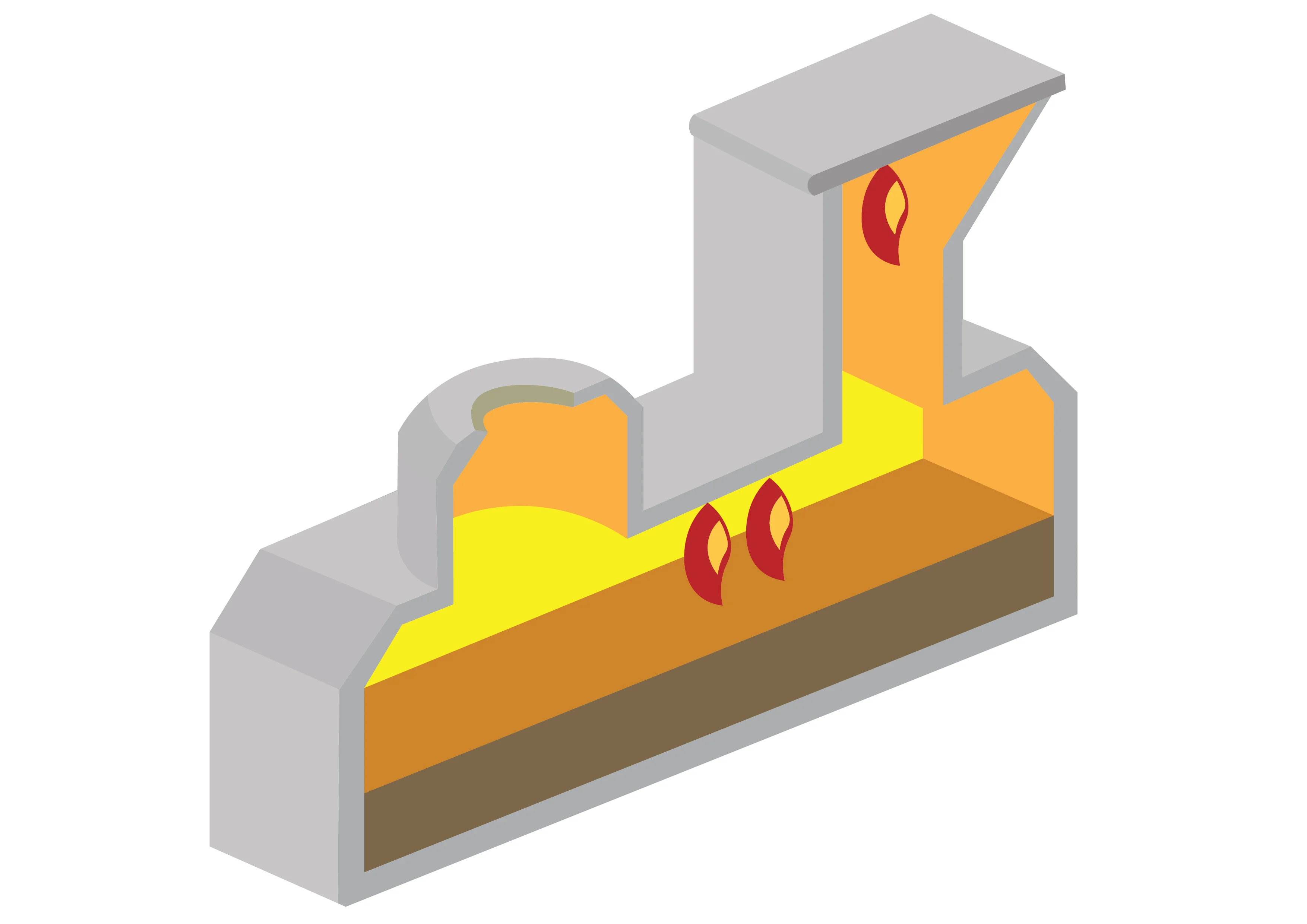

Flash Smelting Furnace
Our specialized services for flash smelting furnaces focus on controlled dry-out and heat-up processes, ensuring uniform temperature distribution, maximizing refractory lifespan, and reducing the potential for steam explosions. OptiFlame Melting Technology enhances combustion efficiency, reduces NOx emissions, and optimizes fuel usage for greater productivity.
Read more about flast smelting furnace

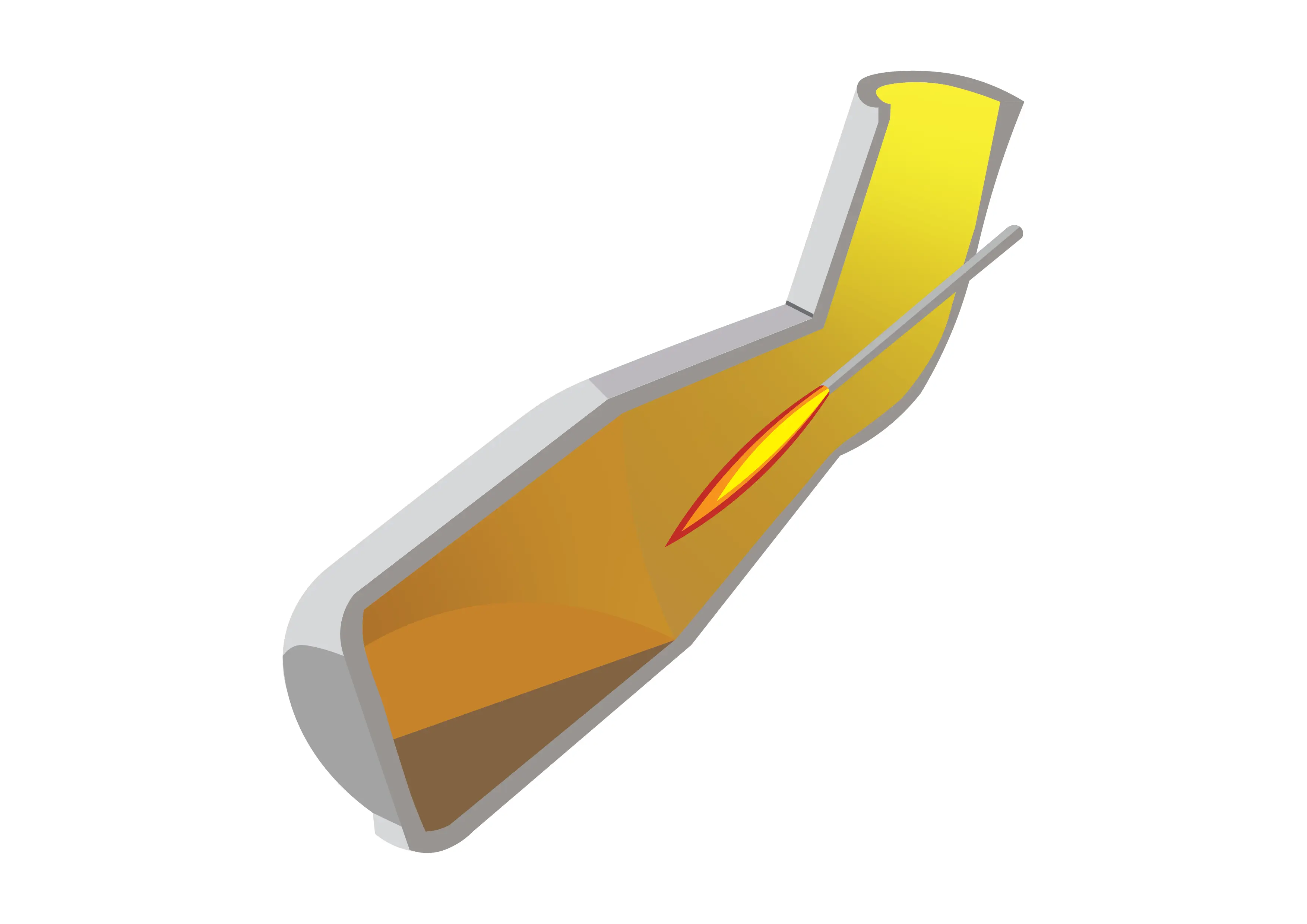

TBRC Caldo
We provide tailored dry-out and heat-up solutions for TRC Caldo furnaces, ensuring optimal temperature control and extended refractory life. Our technology suite includes OptiFlame Melting Technology for efficient combustion, IPCU for precise pressure regulation, Oxial Software Solution for fuel optimization, and Rotary Burner for enhanced material recycling.
Read more about tbrc caldo

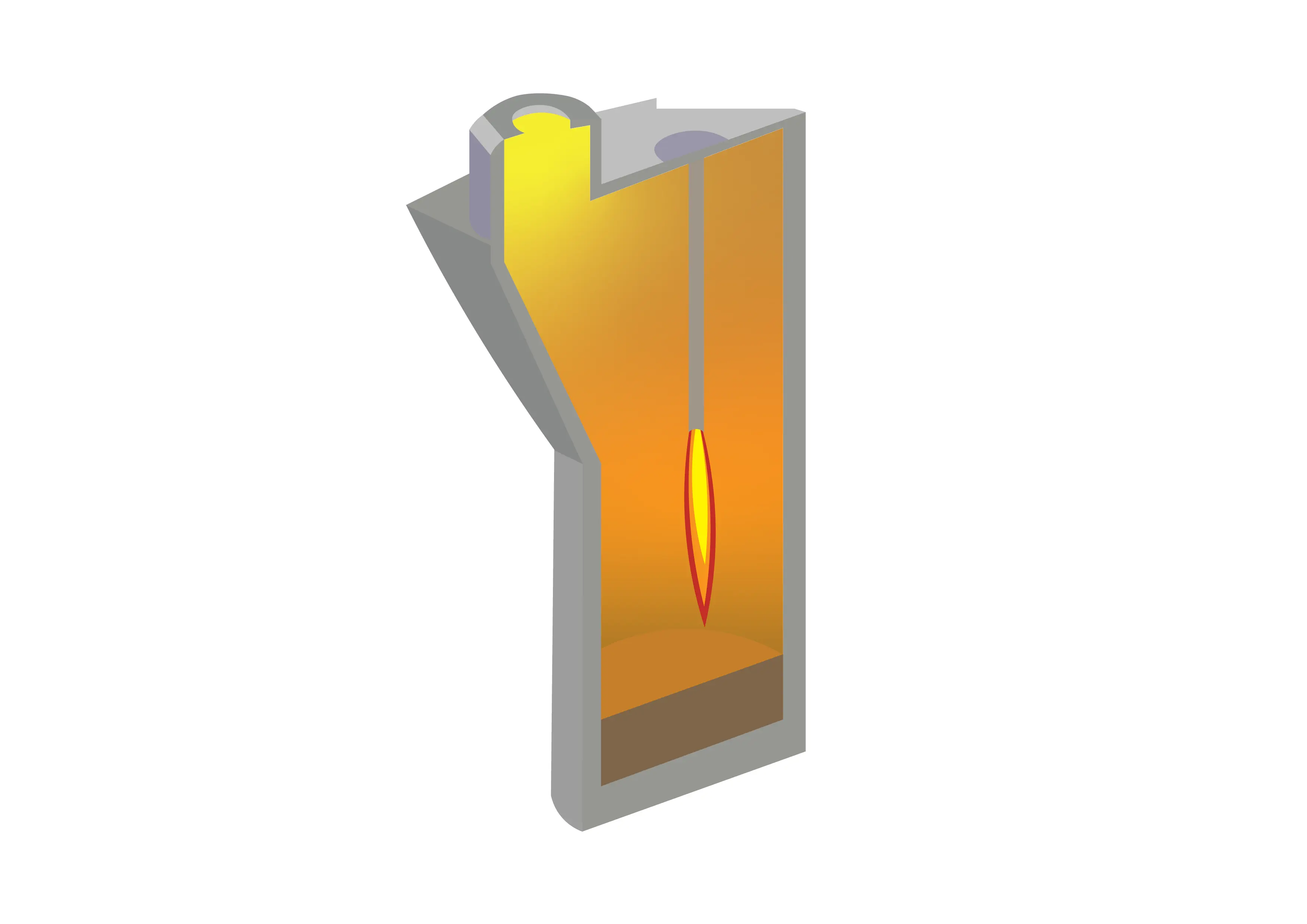

Ausmelt / Isasmelt
Our expert services for Ausmelt and Isasmelt furnaces ensure controlled dry-out and heat-up, providing uniform temperature management and prolonging the life of refractories. OptiFlame Melting Technology drives high efficiency, minimizes NOx emissions, and cuts fuel consumption to maximize productivity while reducing operational costs.
Read more about ausmelt / isasmelt

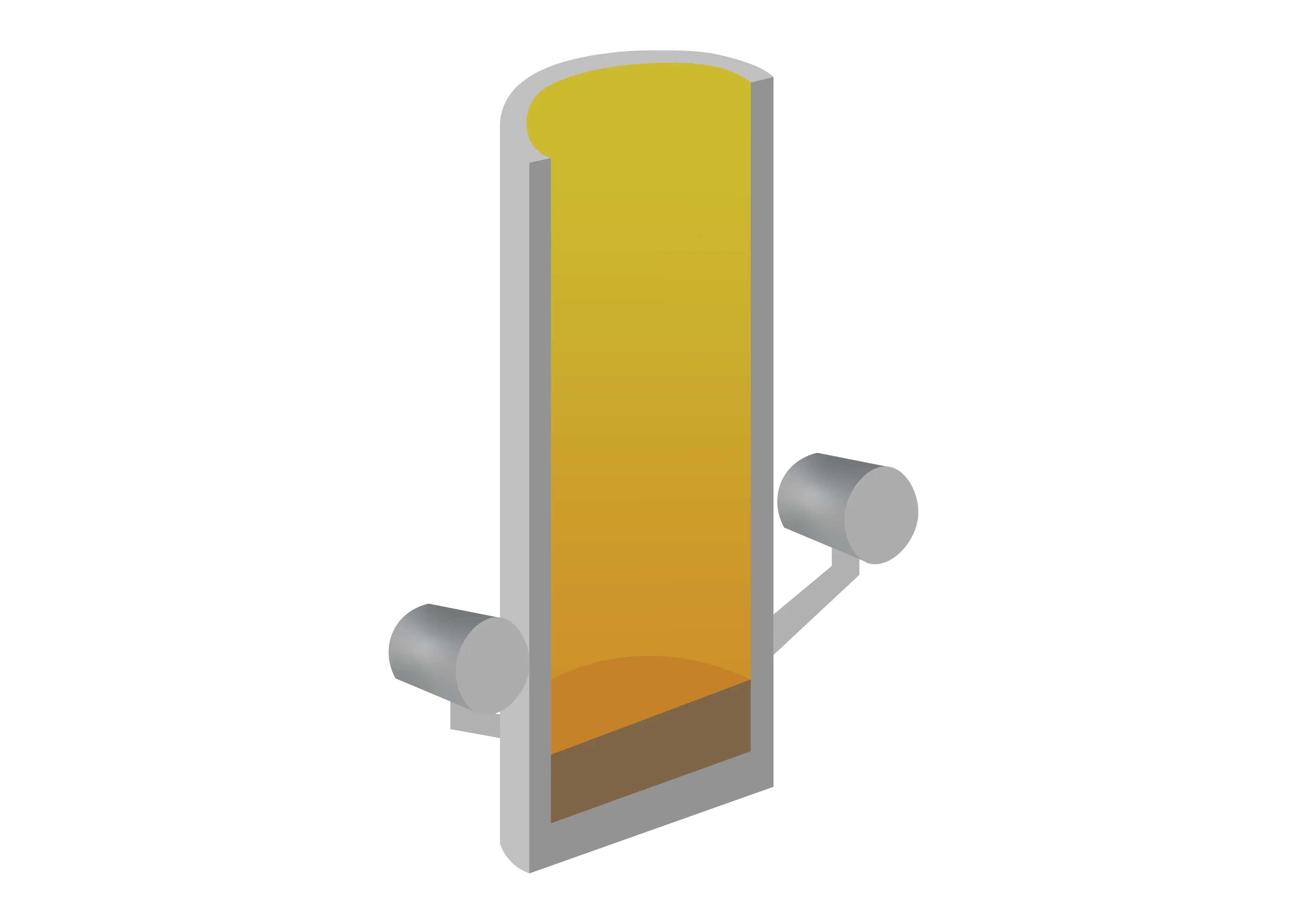

Shaft Furnace
We offer efficient dry-out and heat-up services for shaft furnaces, ensuring balanced temperature distribution and prolonged refractory durability. With OptiFlame Melting Technology, we enhance combustion efficiency, minimize NOx emissions, and optimize fuel consumption, reducing both operational costs and environmental impact.
Read more about shaft furnace

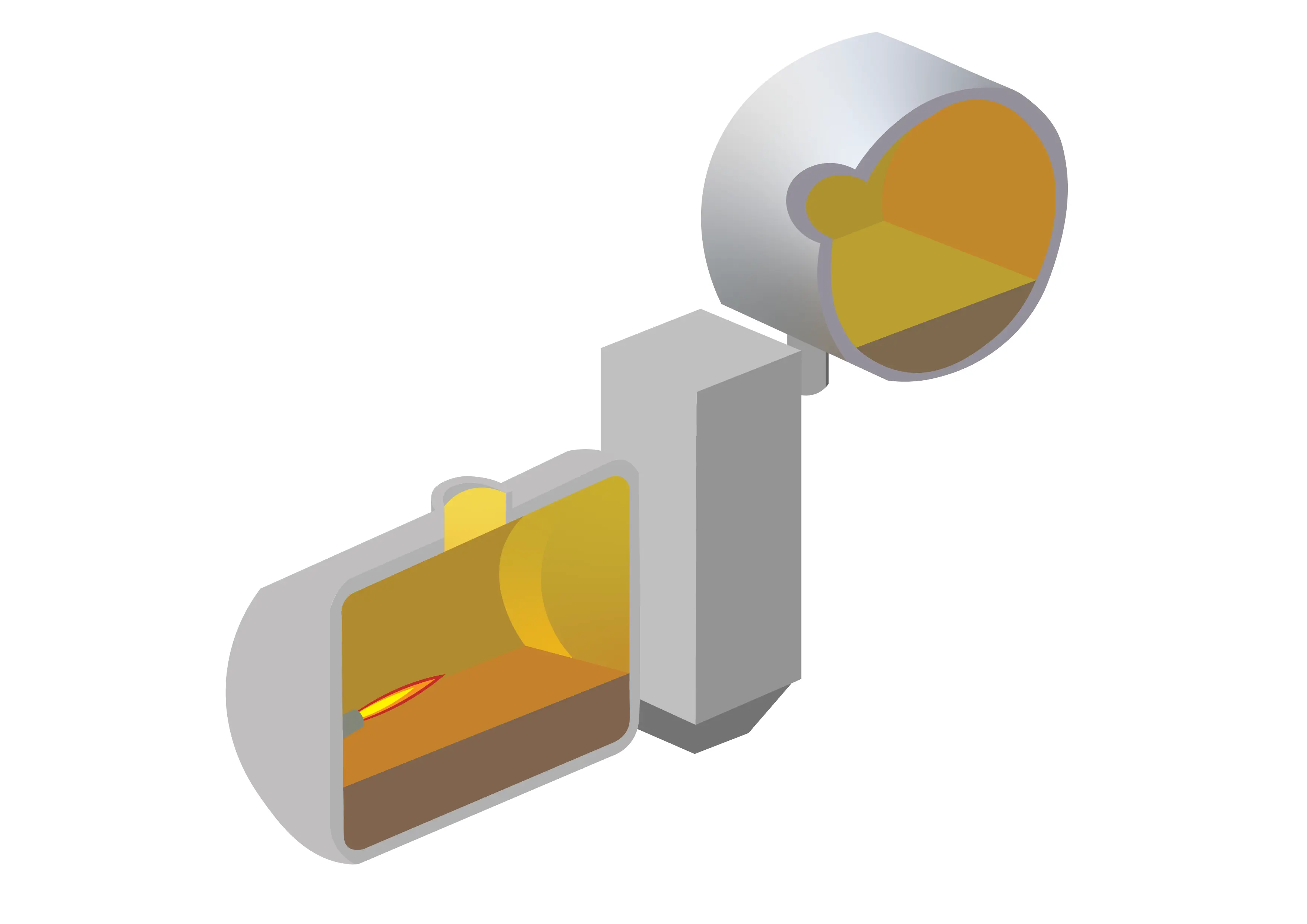

Pierce Smith Rotary Furnace
We specialize in dry-out and heat-up services for Pierce Smith and Rotary furnaces, providing consistent temperature control to extend refractory life. Our technology package includes OptiFlame Melting Technology, IPCU for precision pressure control, Oxial Software Solution for fuel optimization, and Rotary Burner for improved recycling and melting.
Read more about pierce smith rotary furnace

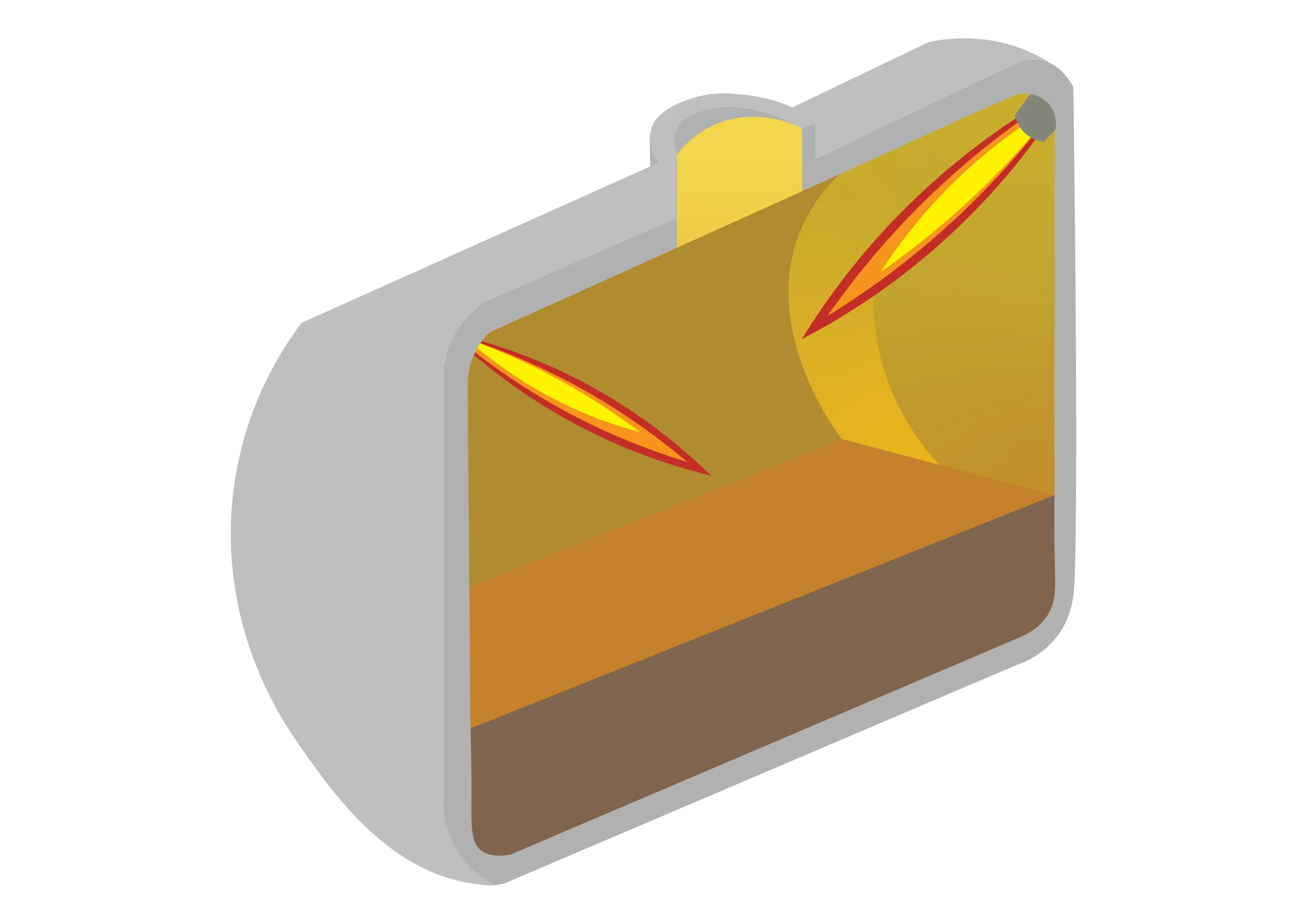

Fix Angular Type
Our dry-out and heat-up services for fixed angular type furnaces ensure even temperature distribution and maximize refractory longevity. With OptiFlame Melting Technology and IPCU, we optimize combustion and provide precise furnace pressure control, improving overall performance and reducing operating costs.
Read more about fix agular type

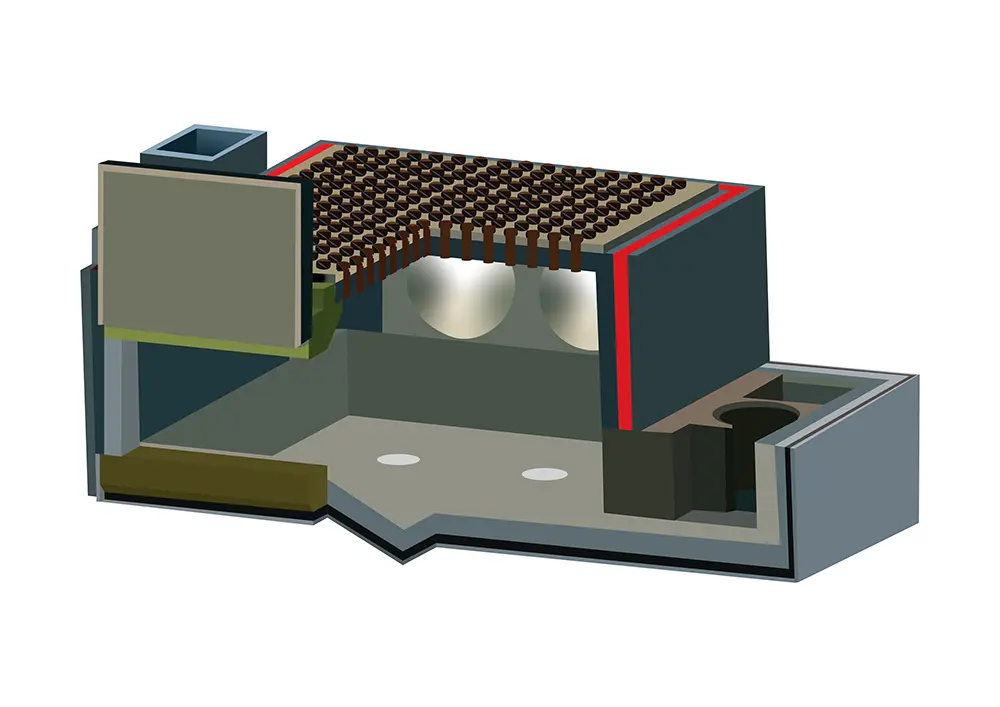

Reverb Furnace
We offer customized dry-out and heat-up services for reverb furnaces, ensuring even heat distribution and extending refractory life. Our advanced technologies, including OptiFlame Melting Technology for high-efficiency combustion, IPCU for pressure control, and Oxial Software Solution for fuel optimization, enhance performance and reduce emissions.
Read more about reverb furnace
Anode Furnace
We offer specialized heat-up and dry-out services for anode furnaces, ensuring even temperature distribution and extended refractory life. Our high-velocity burner technology operates with excess air to minimize steam explosion risks and prevent furnace damage, guaranteeing optimized performance and 24/7 reliability. Our technology suite includes OptiFlame Melting Technology for efficient Oxy-Fuel combustion at low maintenance and superior performance.
Read more about anode furnaceFrequently asked questions
Which copper smelting and refining furnaces does Hotwork heat up?
Flash smelting furnaces, TBRC Caldo furnaces, Ausmelt/Isasmelt furnaces, shaft furnaces, Pierce Smith converters and rotary furnaces, fix angular type furnaces, reverberatory furnaces and anode furnaces. Since 1963 Hotwork has provided furnace heat-ups to the major copper and nickel smelters worldwide.
How does Hotwork heat up a flash smelting furnace?
With its own high-velocity burners running on excess air, developed for all types and sizes of flash smelting furnaces. The burners can be placed through almost any reasonably sized furnace opening to put the heat exactly where it is needed. Each burner has a turndown ratio of 100:1, controls temperature between 80 °C and 1400 °C, and delivers up to 2.5 million kcal (10 million BTU) and over 5,000 Nm³ of hot gas per hour. They are the same burners as in other industries; above 800 °C gas-fired burners are highly recommended.
Besides the heat-up, what flash furnace services are there?
Furnace cool-down, hot hold, refractory maintenance and drying, and operational support – to extend refractory life, reduce the risk of steam explosion and keep the temperature distribution even.
Why use high-velocity burners for an anode furnace heat-up instead of oxy-fuel burners?
Oxy-fuel combustion has environmental and economic advantages in operation, but its very hot flame heats unevenly and can damage the refractory and shorten the lining life during a heat-up. The lining must first be dried out properly before the furnace moves to higher temperatures, and that needs high-velocity burners: Hotwork's burners on excess air keep a positive furnace pressure and a uniform temperature throughout the anode furnace.
Which combustion products does Hotwork offer for copper furnaces?
The OPTIflame melting burner (air-fuel and oxy-fuel benefits in one burner, 10 kW–20 MW, hydrogen ready), the IPCU pressure control unit that stops false air, the Oxial software that adjusts fuel and rotation in real time, and a rotary burner for melting and recycling copper, lead, zinc, tin and aluminium scrap and slag oxides.
Is the service available at short notice?
Yes – Hotwork's heat-up service is available 24/7, 365 days a year, from every branch.
